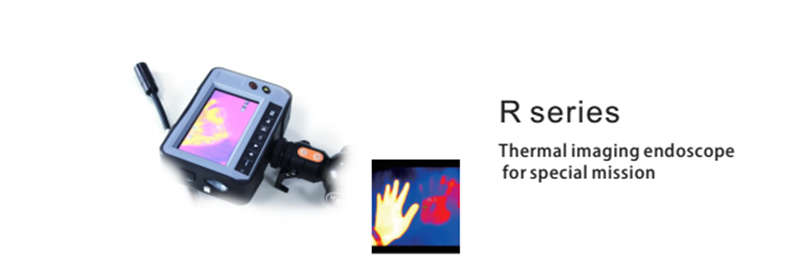

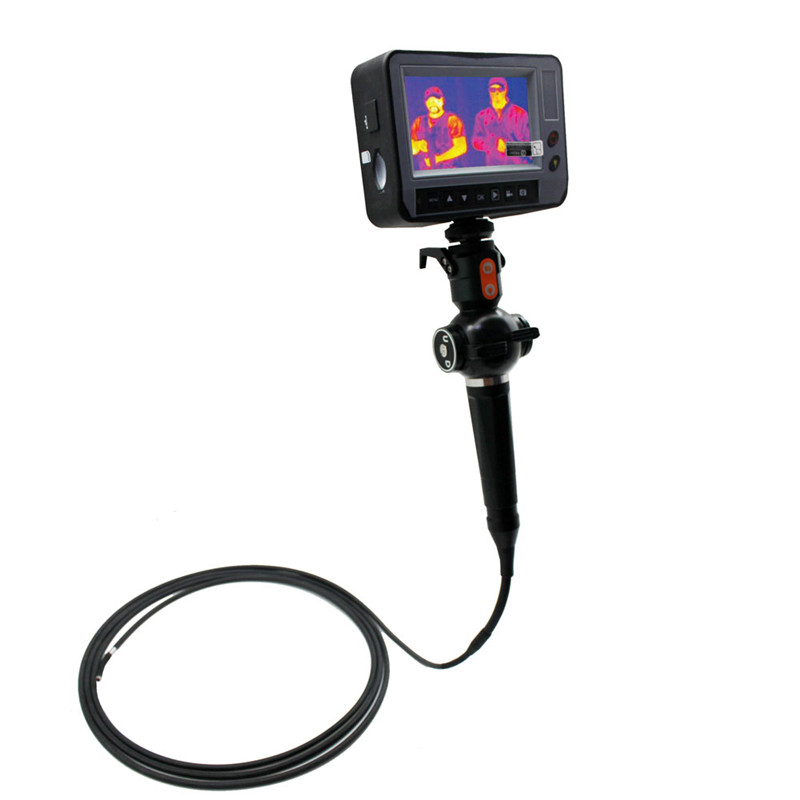

NG-tec have Thermal imaging endoscope for special mission. Camera OD are 18.5mm, Cable are 8mm*2m.
It is with 4ways articulating tip.
Sensor: Uncooled focal plane sensor
Sensor definition : 60x80 120x160
Field of view : 50° & 57°
Frames per second: 9
Temp range : -20-150° C
Temp measurement : Center point2x2 Accuracy: -20-0° C +/-7°C
0-35°C +/-5°C
35-150°C +/-3°C
Articulation :4 direction
Bending Angle: Up /down /left /right each above 120 Bending Angle
Distal end: Dia 18.5x45mm
Insertion tube :Dia8mmx2m
Screen 4.3inch LCD
Photo: 640x480JEPG
Video: 640x480AVI
Storage media :SD card support 32GB
Battery : Lithium battery 3000mAh
AC adapter :Input 100-240VAC 50/60Hz, Out put 5VDC
