Description
Features:
* Camera Diameter: 7mm
* Sensor: 2.0 megapixels CMOS
* Resolution:1600*1200 1280x720, 640x480, 320x240
* View Angle:70°
* LED Light: 6pcs adjustable
* Focal Distance:4cm - 10cm
* Transmission Distance: Within 5-10m
* Working Time: About 70 hours for a full recharged
* Power Source: 600mAh build-in Li-lon battery
* Power in for recharging: DC 5V
* Support Capture Pictures: Photo Format: JPEG
* Support Record Video: Video Format: AVI
* Support System: Android / IOS(Above IOS8.0) / Windows/Mac
Package include:
1 x endoscope
1 x side mirror
1 x hook
1 x magnet
1 x manual book
Description:

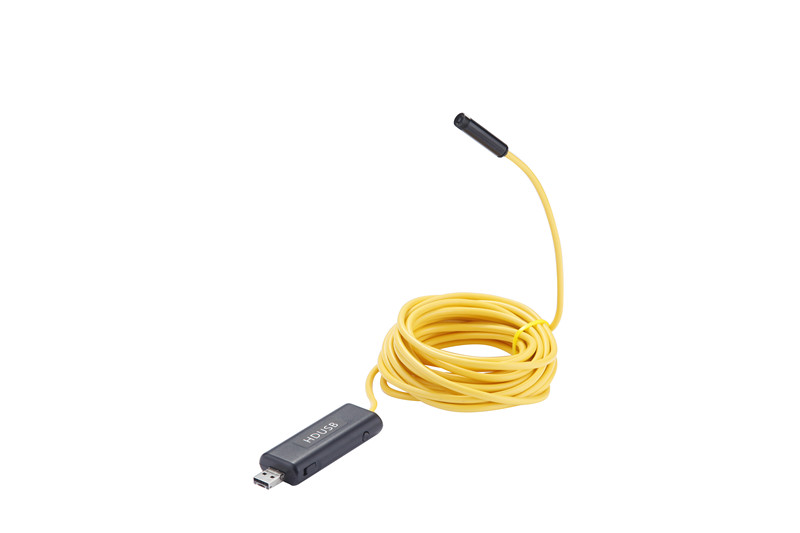

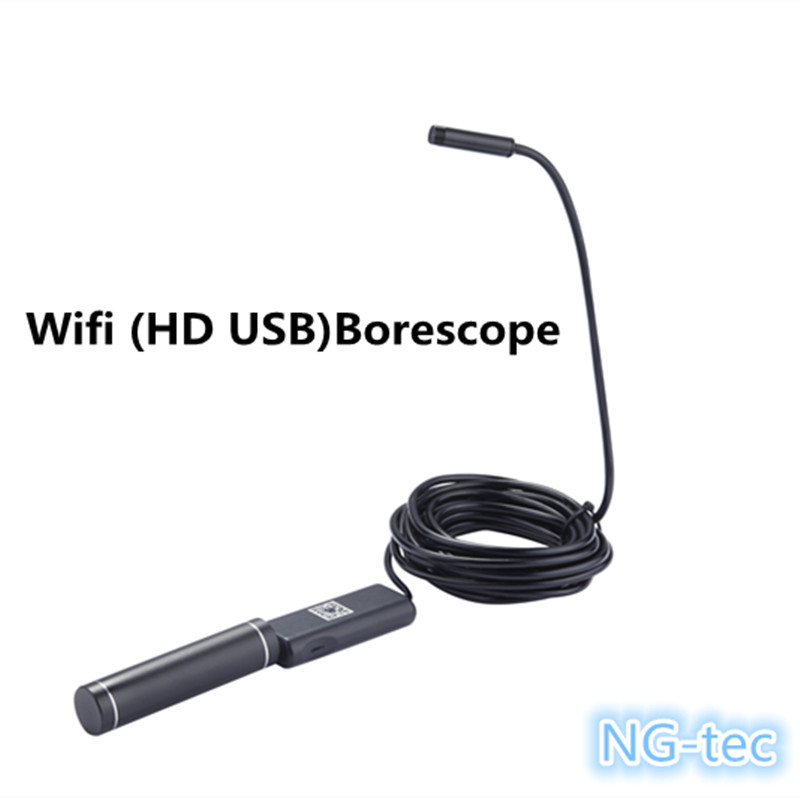

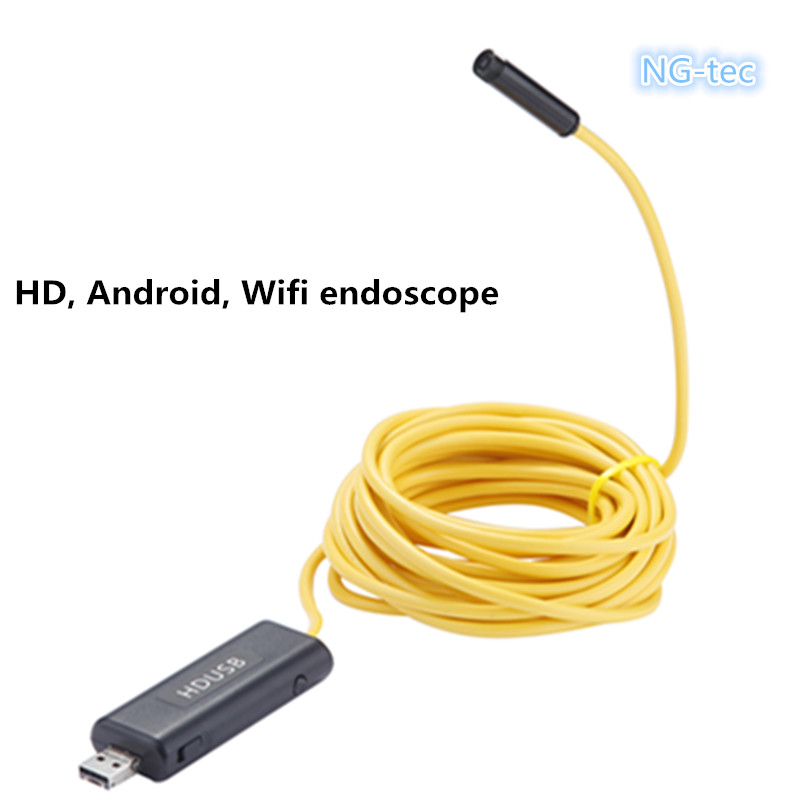

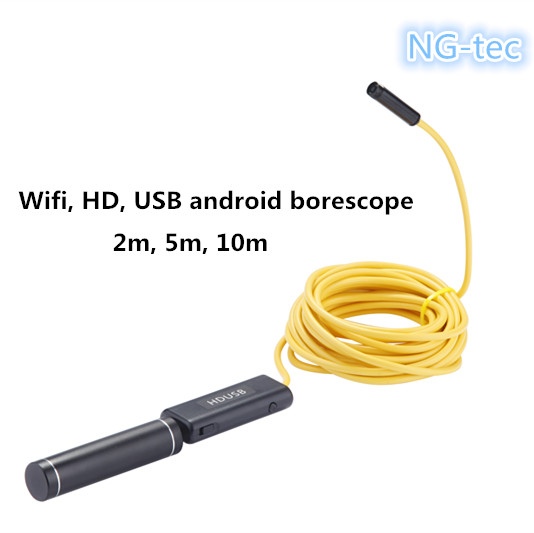

HDUSB is an endoscope which integrated with PC, Android and wifi.And this
endoscope added the latest YUV protocol transmission,algorithm is faster and easier
to operate.There are three ways to use the product,you can choose freely according
to your own conditions.
Operationa Manual:
Wifi endoscope (Android, IOS) usage:
1,Set the product's switch away from the USB interface.Download and install the APP
by scanning the QR code.
2,Connected the product to power bank, mobile phone charging head, computer
USB interface or other power supply equipment.
3,After 5 seconds, the product will issue a WiFi signal. Open your mobile radio
settings, find out the WIFI name of “HDUSB****” and click on the connection (no
password). Open the APP then you can use.
4,Press the camera button to save the product picture.Press the camera button for 3
seconds, then release, the product starts recording.Long press 3 seconds in the
recording state, the video files will stop and save.Long press 7 seconds or more,
product recovery.
USB endoscope (PC) usage:
Search and download the APP “ecap”,set the product's switch to the USB
interface,and plug into the computer USB interface,open the APP then you can begin
to use.
Android endoscope (Android) usage:
Search and download the APP “camerafi”,plug the product into the mobile phone
port then you can begin to use . (Prompt: This function needs to meet two conditions:
1, The phone has OTG function. 2, The phone support external camera function.
Please check your phone before using this method.)
1, Adjustable LED Switch 2, USB/Android Connector 3, USB/Android/WiFi Switch
4, Shutter/Video Recorder/ Reset Button
WiFi function Software Android version app PC edition English Software
